Designed to handle a variety of capacities.

standard model
CAPACITY & CONFIGURATIONS

DRUM CONFIGURATIONS

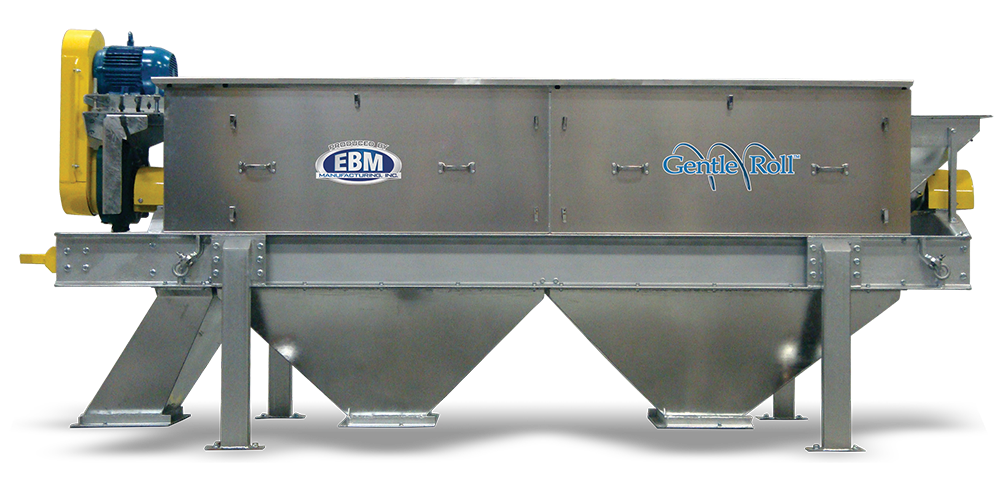

The Gentle Roll™ Standard Model is designed to handle a variety of capacities. For large capacities, multiple drums are used to keep screening efficiency at its highest. When using a multiple drum unit, each drum is powered individually allowing an operator to partially shutdown for maintenance to minimize downtime.

Drums
1
2
4
6
8
10
Bu/Hr
1,500
3,000
6,000
9,000
12,000
15,000
Cu Ft/Hr
1,900
3,800
7,600
11,400
15,200
19,000
M3/Hr
53
106
212
318
424
530
Tons/Hr
43
86
171
256
324
428
Mtons/Hr
39
78
156
234
312
390

The above chart is based on dry, good flowing product, with a bulk density of 45lbs/ft³ or 720 kg/m³ at 1900 cuft/hr per drum. Capacity varies depending on product specifications and flow.

DRUM CAPACITY

  • 1500 bushels per hour of good flowing grain (corn, etc.)
  • 1900 cubic feet per hour good flowing product (small pellets)
  • 1200 cubic feet per hour poor flowing product (cubes)
  • 43 tons per hour of dry, free-flowing product (based upon 45 lbs/cu ft)

DRUM CONFIGURATIONS

The Gentle Roll™ Standard Model is designed to handle a variety of capacities. For large capacities, multiple drums are used to keep screening efficiency at its highest. When using a multiple drum unit, each drum is powered individually allowing an operator to partially shutdown for maintenance to minimize downtime.

DRUM CAPACITY

  • 1500 bushels per hour of good flowing grain (corn, etc.)
  • 1900 cubic feet per hour good flowing product (small pellets)
  • 1200 cubic feet per hour poor flowing product (cubes)
  • 43 tons per hour of dry, free-flowing product (based upon 45 lbs/cu ft)
Drums
1
2
4
6
8
10
Bu/Hr
1,500
3,000
6,000
9,000
12,000
15,000
Cu Ft/Hr
1,900
3,800
7,600
11,400
15,200
19,000
M3/Hr
53
106
212
318
424
530
Tons/Hr
43
86
171
256
324
428
Mtons/Hr
39
78
156
234
312
390

The above chart is based on dry, good flowing product, with a bulk density of 45lbs/ft³ or 720 kg/m³ at 1900 cuft/hr per drum. Capacity varies depending on product specifications and flow.

SCREEN CONFIGURATIONS

standard model

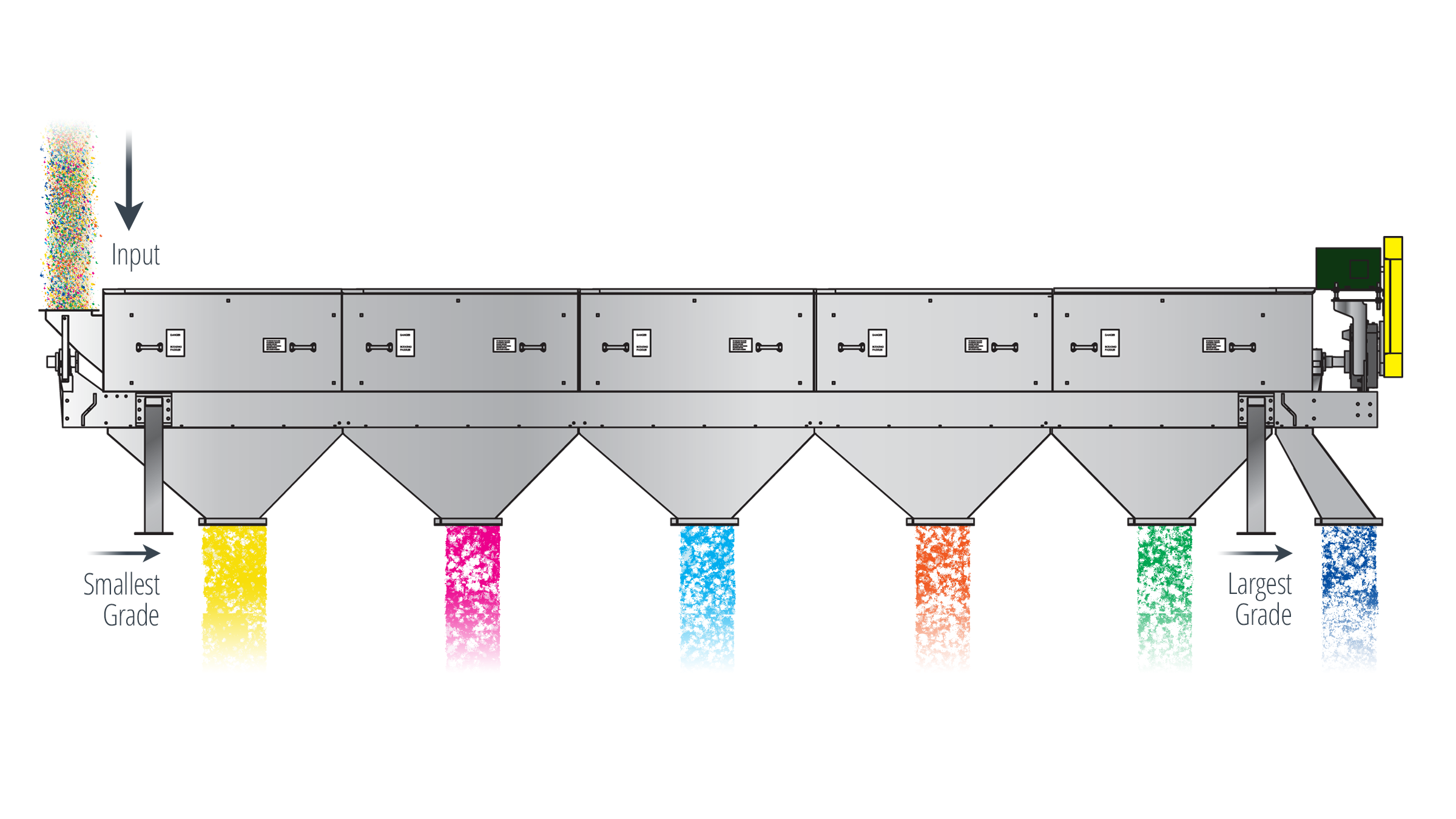

The Gentle Roll™ Standard Model offers a wide range of models and configurations. The flexibility of the design allows you to remove fines, overs, fines & overs, or separate by size. Screen configurations range from one to five screen sections and are determined by the end goal and application.

  • Fine Particle Removal: 1-3 screens
  • Scalping: 2 screens
  • Fine Particle Removal and Scalping: 4-5 screens (2-3 to remove fines and 2 to scalp)
  • Grade Sizing: 1-5 screens depending upon the application and goal
standard model

MODEL CHART

To determine the model first choose the number of drums required from the Drum Configurations Chart based on the desired capacity of the application. Then choose the number of screen sections required based on the information under the Screen Configurations section.

One Screen
Two Screen
Three Screen
Four Screen
Five Screen
One Drum
24S-1
24S-2
24S-3
24S-4
24S-5
Two Drum
24D1-1
24D1-2
24D1-3
24D1-4
24D1-5
Four Drum
24D2-1
24D2-2
24D2-3
24D2-4
24D2-5
Six Drum
24D3-1
24D3-2
24D3-3
24D3-4
24D3-5
Eight Drum
24D4-1
24D4-2
24D4-3
24D4-4
24D4-5
Ten Drum
24D5-1
24D5-2
24D5-3
24D5-4
24D5-5
